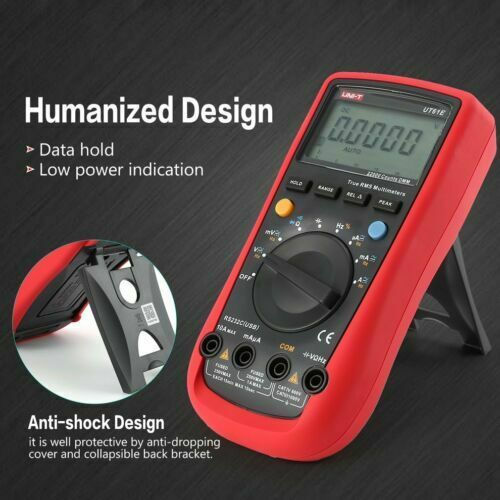

UNI-T UT61E Digital Multimeters AC/DC Modern Digital Auto Ranging Multimeters
SKU: M1OH
UNI-T UT61E Digital Multimeters AC/DC Modern Digital Auto Ranging Multimeters MuDescription
UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements.
1、Large LCD screen；
2、High resolution analog pointer display；
3、Full range overload protection；
4、Data hold, REL, Peak value measurement；
5、Low battery indication, and sleep mode；
6、External interface supports RS-232C and USB cable.

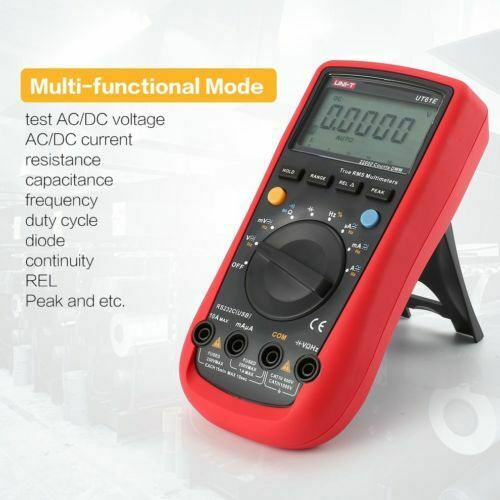

UT61 Series can measure AC/DC voltage and current (UT61D, UT61E has true RMS), resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.
UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.
Features:
Display Count: 22000
Auto Range: √
True RMS: √
Bandwidth (Hz）: 45Hz ～10kHz
Duty Cycle: 0.1% ～ 99.9% √
Diode: √
Continuity Buzzer: √
Low Battery Indication: ≤7.5V
Data Hold: √
Relative Mode: √
Peak Value: √
RS-232: √
Analogue Bar Graph: 46
Input Protection: √
Input Impedance for DCV: Around 10MΩ
Specifications:
Model: UT61E
DC Voltage (V): 220mV/2.2V/22V/220V/1000V ±(0.1%+2)
AC Voltage (V): 220mV/2.2V/22V/220V/750V ±(0.8%+10)
DC Current (A): 200μA/2200μA/22mA/220mA/2.2A/10A ± (0.5%+10)
AC Current (A): 200μA/2200μA/22mA/220mA/2.2A/10A ±(0.8%+10)
Resistance (Ω): 220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ±(0.5%+10)
Capacitance (F): 22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF ±(3.0%+5)
Frequency (Hz): 10Hz-220MHz ±(0.01%+5)
General Characteristic:
Power: 9V Battery 6F22 (not included)
LCD Size: 65mm * 43 mm
Product Color: Red and Grey
Product Net Weight: 370g
Product Size: 180mm * 87mm * 47 mm
Packag Size: 22 * 16 * 6cm / 8.7 * 6.3 * 2.4in
Package Weight: 662g / 1.5lb
Package list:
1 * UNI-T UT61E Modern Digital Multimeters
2 * Test Lead
1 * Muli-Purpose Socket
1 * RS-232 Interface Cable
1 * PC Software CD
1 * English Manual
